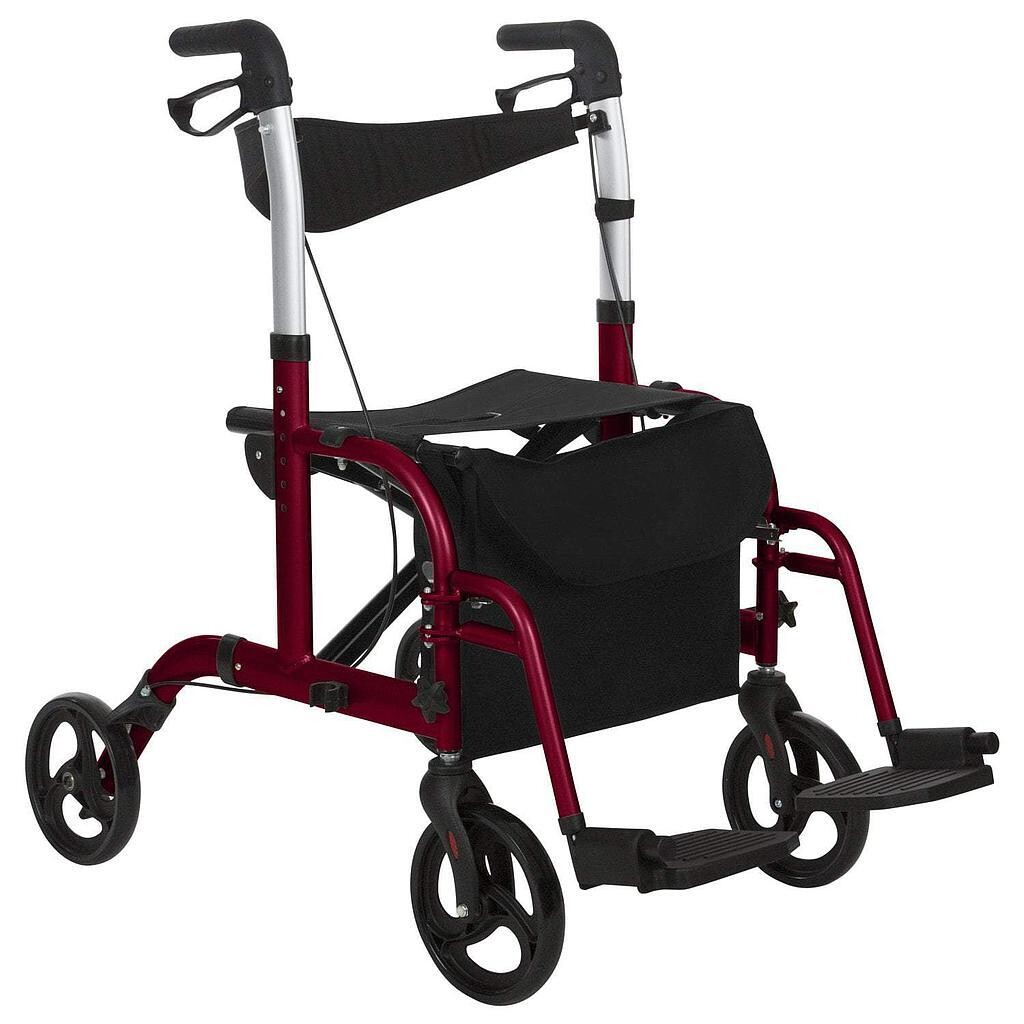

Rollator/Transport Chair
SKU 89445
$290.00
1 available
1
Product Details
-
Dimensions:
- Base when open: 24” by 40”
- Adjustable Height: 33.25” to 38.25”
- Wheels: 8”
- Folded: 8.25” by 40”
- Seat dimensions: 18” x 12” x 21.75”
How To Assemble:- Open the wheelchair rollator frame until the seat is locked into position.
- Insert the height adjustable handles into the frame, ensuring each snap button is visible.
- Insert the two rear wheels into the frame, ensuring each snap button is securely locked in the desired position.
- Insert front wheels into the frame, ensuring the holes on each piece are aligned.
- Insert a screw into each hole and attach with a washer and a star bolt, so that the star bolt is oriented on the outside of the Wheelchair/Rollator.
- Attach the footrests.
- Attach storage bag to the frame with the fastener loops.
How To Lock The Footrest In Place:- Fold the footrest down.
- Gently pull the footrest around to the front.
- Push the footrest bar into the locking clip securely.
Braking:- Walker is equipped with a dual wheel braking system
- To adjust the brakes, turn cable adjuster located on the handbrake
Adjusting Handle Height:- Handle height can be adjusted in 1” increments with the push pins located on the sides of the rollator
